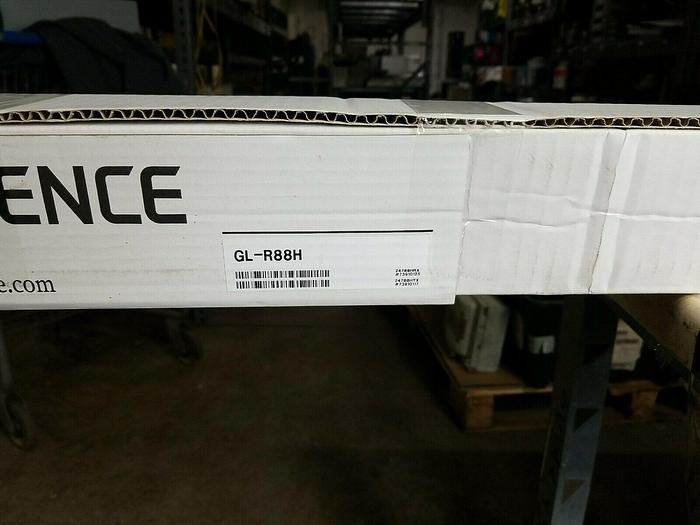

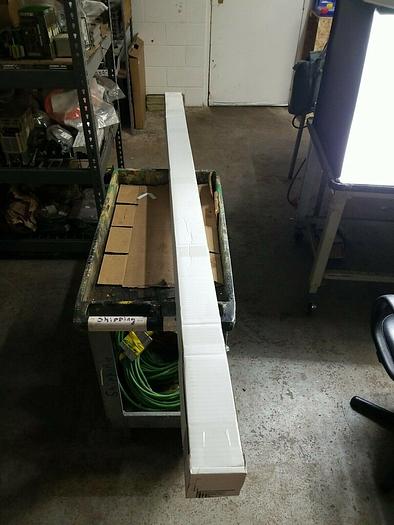

KEYENCE GL-R88H light curtains 1740mm 68"
KEYENCE GL-R88H light curtains 1740mm 68"
$2,499 (USD)
Available quantity:1
orCall 231-660-1175
Description
KEYENCE GL-R88H. Condition is "New". Shipped with UPS Ground.
Specifications
| Manufacturer | KEYENCE |
| Model | GL-R88H |
| Condition | New |
| Stock Number | 265090767126 |
| Mpn | GL-R88H |
| Detection capability | ø0.98" ø25 mm |
| Beam axis spacing/lens diameter | 20 mm / ø5 0.79" / ø0.20" |
| Detecting distance | 0.66 to 49.21' 0.2 to 15 m*1 |
| Effective aperture angle | Max. ±2.5° (When operating distance is 9.84' 3 m or more) |
| Light source | Infrared LED (870 nm) |
| Response time (ossd) (ms), wire synchronization, one-line or optical synchronization system (channel 0), on→off | 13.9 |
| Response time (ossd) (ms), wire synchronization, one-line or optical synchronization system (channel 0), off→on | 59.7*2 |
| Response time (ossd) (ms), wire synchronization, one-line or optical synchronization system (channel 0), all blocked→on | 92.5*3 |
| Response time (ossd) (ms), optical synchronization system (channel a or b), on→off | 20.6 |
| Response time (ossd) (ms), optical synchronization system (channel a or b), off→on | 69.7*2 |
| Response time (ossd) (ms), optical synchronization system (channel a or b), all blocked→on | 119.2*3 |
| Detection mode | Turns on when no interruptions are present in the detection zone |
| Synchronization between the transmitter and receiver | Optical synchronization or Wire synchronization (Determined by wiring) |
| Light interference prevention function | Prevents mutual interference in up to two GL-R systems. |
| Light interference prevention function optical synchronization | prevented by Channel A and B with setting switch |
| Light interference prevention function wire synchronization | prevented automatically |
| Control output (ossd output), output | 2 transistor outputs. (PNP or NPN is determined by the cable type) |
| Control output (ossd output), max. load current | 500 mA*4 |
| Control output (ossd output), residual voltage (during on) | Max. 2.5 V (with a cable length of 16.40' 5 m) |
| Control output (ossd output), off state voltage | Max. 2.0 V (with a cable length of 16.40' 5 m) |
| Control output (ossd output), leakage current | Max. 200 µA |
| Control output (ossd output), max. capacitive load | 2.2 µF |
| Control output (ossd output), load wiring resistance | Max. 2.5 Ω |
| Supplemental output (non-safety-related output), aux, transistor outputs. (pnp or npn is determined by the cable type) load current | Max. 50 mA (with a cable length of 16.40' 5 m) |
| Supplemental output (non-safety-related output), aux, transistor outputs. (pnp or npn is determined by the cable type) residual voltage | Max. 2.5 V (with a cable length of 16.40' 5 m) |
| Supplemental output (non-safety-related output), error output, transistor outputs. (pnp or npn is determined by the cable type) load current | Max. 50 mA (with a cable length of 16.40' 5 m) |
| Supplemental output (non-safety-related output), error output, transistor outputs. (pnp or npn is determined by the cable type) residual voltage | Max. 2.5 V (with a cable length of 16.40' 5 m) |
| Supplemental output (non-safety-related output), muting lamp output, incandescent lamp (24 vdc, 1 to 5.5 w) led lamp (load current | 10 to 230 mA) can be connected. |
| External input, when using a pnp output cable, edm input wait input reset input muting input 1, 2 override input, on voltage | 10 to 30 V |
| External input, when using a pnp output cable, edm input wait input reset input muting input 1, 2 override input, off voltage | Open or 0 to 3 V |
| External input, when using a pnp output cable, edm input wait input reset input muting input 1, 2 override input, short circuit current | Approx. 2.5 mA (Approx. 10 mA with EDM input only) |
| External input, when using an npn output cable , edm input wait input reset input muting input 1, 2 override input, on voltage | 0 to 3 V |
| External input, when using an npn output cable , edm input wait input reset input muting input 1, 2 override input, off voltage | Open or 10 V or more |
| External input, when using an npn output cable , edm input wait input reset input muting input 1, 2 override input, short circuit current | Approx. 2.5 mA (Approx. 10 mA with EDM input only) |
| Rating, power voltage | 24 VDC ±20%, ripple (P-P) 10% or less, Class 2 |
| Power supply, current consumption (max.) (ma), transmitter | 79 |
| Power supply, current consumption (max.) (ma), receiver | 89 |
| Protection circuit | Reverse current protection, short-circuit protection for each output, surge protection for each output |
| Approved standards, emc, ems | IEC61496-1, EN61496-1, UL61496-1 |
| Approved standards, emc, emi | EN55011 ClassA, FCC Part15B ClassA, ICES-003 ClassA |
| Approved standards, safety | IEC61496-1, EN61496-1, UL61496-1 (Type 4 ESPE), IEC61496-2, EN61496-2, UL61496-2 (Type 4 AOPD), IEC61508, EN61508, (SIL3), IEC62061, EN62061 (SIL CL3), EN ISO13849-1 |
| Environmental resistance, enclosure rating | IP65/IP67 (IEC60529) |
| Environmental resistance, overvoltage category | II |
| Environmental resistance, ambient light | Incandescent lamp |
| Environmental resistance, operating ambient temperature | -10 to +55 °C 14 to 131 °F (No freezing) |
| Environmental resistance, storage temperature | -25 to +60 °C -13 to 140 °F (No freezing) |
| Environmental resistance, operating relative humidity | 15 to 85 % RH (No condensation) |
| Environmental resistance, storage relative humidity | 15 to 95 % RH |
| Environmental resistance, vibration resistance | 10 to 55 Hz, Double amplitude 0.7 mm 0.03", 20 sweeps in each of the X, Y, and Z directions |
| Environmental resistance, shock resistance | 100 m/s2 (Approx. 10 G), 16 ms pulse, 1,000 times in each of the X, Y, and Z directions |
| Material, main unit case | Aluminum |
| Material, upper case/lower case | Nylon (GF 30%) |
| Material, front cover | Polycarbonate, SUS304 |
| Weight, transmitter | 2450 g |
| Weight, receiver | 2460 g |
