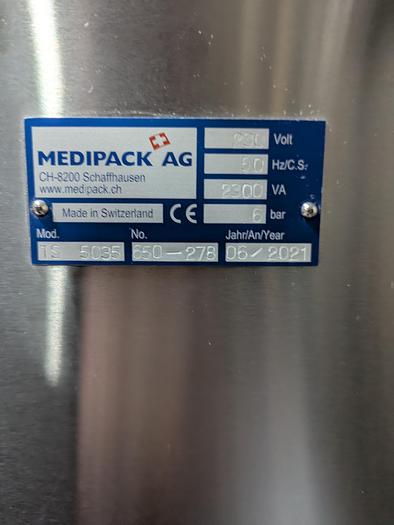

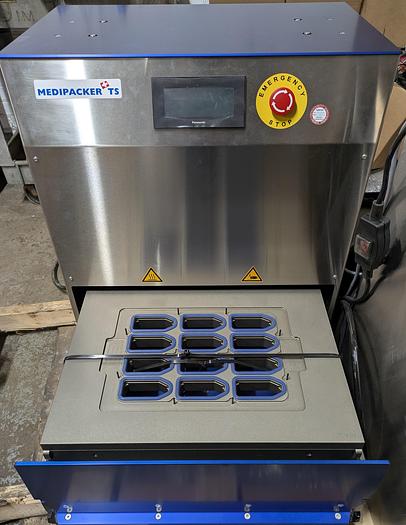

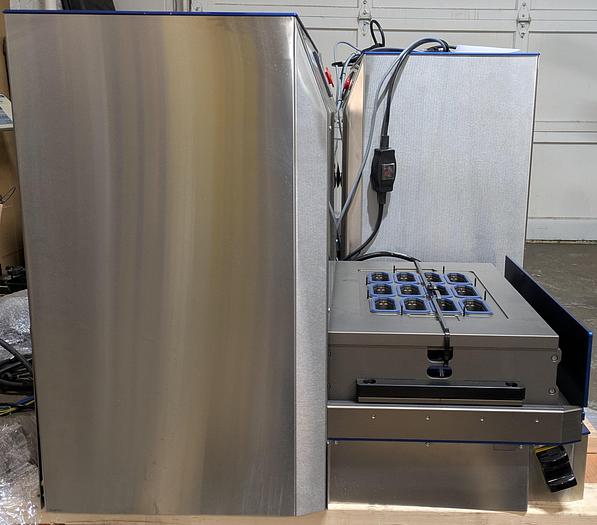

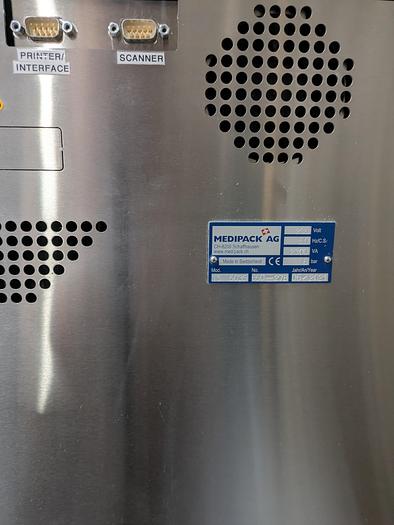

Medipack AG model TS 5035

Programmable touch screen sealing temperature up to 190°C

Adjustment accuracy at 130°C +/-1°C on the heating plate per 5-point measurement

PID control system

Programmable touch screen sealing force from 6 kN to 36 kN

Sealing time repetition accuracy less than 0.15 seconds

Power approx. 12 cycles/minute without filling, inserting and unloading packaging

Compressed air connection 0.6 - 1.0 Mpa/6 -10 bar, outside tube diameter 12 mm, length 3 m

the compressed air must be filtered and brought to a dry state

Compressed air consumption per cycle is about 16.5 NL at 0.5 Mpa

Electrical connection 230 VPNE 50/60 Hz,

Trolley options with integrated tool storage system, interface for cycle control

sealing (printing process parameters as statistics), program mem

max. blister height up to 150 mm, drawer drive

Automatic front and rear for sealing cover of roll of film
